Anti UAS UAV Handheld Drone Detector For WiFi GPS Signal Detection

Brand Name : PTC

Model Number : UAV-UAV-DT1

Certification : ISO 9000

Place of Origin : Shenzhen China

MOQ : 1set

Price : Contact Us

Payment Terms : T/T, Western Union

Supply Ability : 50000

Delivery Time : 10-20days

Packaging Details : Carton

Part Number : PTC-Uav-DT1

Channel : 2CH

Detection Frequencies : 2.4G+5.8g

Detection Distance : 50-300meters

Battery Working Time : 3hours

Work Mode : Passive Detection

Detection Drone Model : Mainstream, DIY, Fpv, Racing Drones Included

Contact Now

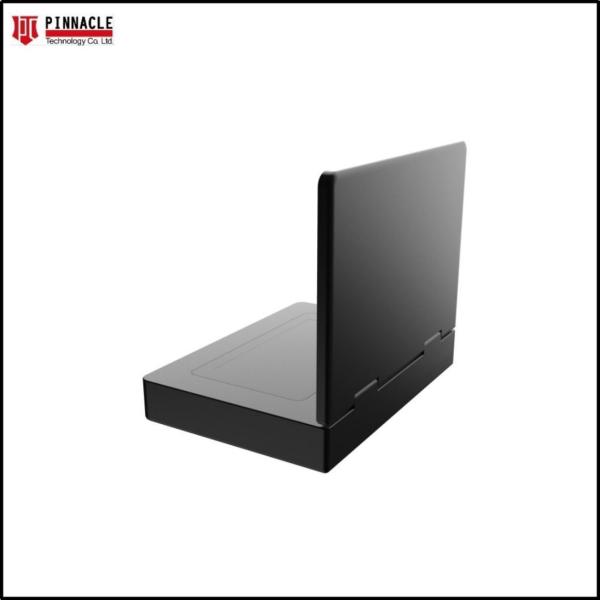

PTC-UAV-DT1 is a handheld device for detection, identification and direction finding of drones. It identifies drone flight control and image transmission signals based on spectrum sensing and artificial intelligence technologies. Its features include: direction finding for Drones; detection of drones with full frequency bands and various types; long detection distance and low false alarm rate; large color screen display with rich display content; small size, light weight, hand-held and It can cooperate with anti-interference guns or Drone Jammers, and is suitable for security tasks in major events, industrial parks, border and coastal defense and other places.

#	Item	Technical Parameters
1	Operating mode	Passive detection
2	Drone models supported	DJI series drones,FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc.
3	Working frequency	2.4GHz, 5.8GHz
4	Detection range	0-1000 meters (urban environment, tested with DJI AIR2 as the target)
5	Azimuth	0°~360°(omnidirectional antenna)
6	Recognition time	≤2s
7	False alarm rate	≤once/day(In an anechoic chamber environment)
8	Swarm detection	≥10 concurrent drones

Direction Finding Mode

1	Operating mode	Directional passive detection
2	Action object	Some drones such as DJI (Phantom series and Yu series), Daotong and Hubson
3	Working frequency	2.4GHz and 5.8GHz
4	Detection distance	100-2000 meters (urban environment, tested with DJI AIR2 as the target)
5	Probe azimuth	≤±17.5°(Target 1km away with frequency locked)

Mechanical parameters

1	size	LWH:250mm180mm55mm(the host)
2	weight	≤2kgs(Antenna included)
3	Battery life	≥3hours
4	Charging time	≤3 hours (using the original charger)
5	Charging interface	Type-C

Anti UAS UAV Handheld Drone Detector For WiFi GPS Signal Detection

Safety and Standards

Model	PTC-UAV-DT1
Degree of protection	IP54

Mechanical parameters

Size	LWH:250mm180mm55mm(Built-in Omni Antenna)
Weight	≤1000g(Antenna included)

Environmental adaptability

Operating temperature

-20ºC~55ºC

Product Features

Passive detection, no signal emission, no interference to the peripheral, environment friendly.
Real-time detection function: the equipment can display the number, brand, model and operating frequency of detected drones in real time.
Direction-finding function: The equipment has a direction-finding mode. After turn the equipment direction-finding mode, the equipment can perform direction-finding on the UAV target.
360ºC Direction finding capability with built-in high gain Omni antenna.
Handheld Tablet type, works alone or couple with a counter drone gun or drone jammers.
Sensitivity adjustment function: the equipment supports adjusting the signal recognition threshold by adjusting the detection sensitivity option.
Low battery reminder function: Equipped with multi-level battery display, when the battery is too low, it will give an alarm promptly.
Alarm mode configuration function: support multiple alarm modes such as light and sound, and the urgency of the alarm ringtone is adjustable.
Type-C charging interface, can use common Android phone charger.
Online update of drone library.
Reset the device to out-of-factory state.
Storage and view of historical detection result data.
View of drone library, including drone make, model and frequency.

Anti UAS UAV Handheld Drone Detector For WiFi GPS Signal Detection

Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Ar-my Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities
etc.
