| Channel | Working Frequencies | Output Power(±1dBm) |
| CH1 | 750-803 MHz | 40 dBm/10W |
| CH2 | 869-894 MHz | 40 dBm/10W |
| CH3 | 925-960 MHz | 40 dBm/10W |
| CH4 | 1930-1990 MHz | 40 dBm/10W |
| CH5 | 2110-2170 MHz | 40 dBm/10W |
| CH6 | 2400 – 2500 MHz | 40 dBm/10W |
| CH7 | 2500-2600 MHz | 40 dBm/10W |
| CH8 | 2600 – 2700 MHz | 40 dBm/10W |
| CH9 | 3300-3400 MHz | 37dBm/5W |
| CH10 | 3400-3600 MHz | 37dBm/5W |
| CH11 | 3600-3800 MHz | 37dBm/5W |
| CH12 | 5150-5450 MHz | 33dBm/2W |
| CH13 | 5450-5850 MHz | 33dBm/2W |
| Total working bands | 7 -13 bands for option |
| Each band power | 10W/5W/2W for option |
| Total output power | 70W |
| Power Supply | AC-110-240V |
| Band power adjustable | power controllable by software control |
| Infrared remote control | to Turn on/off Jammer |
| Software Control interface | RJ45 |
| Antennas | 7pcs high gain internal Panel antenna |
| Jamming Range | about 2-60meters@-80dBm, depend on local signal strength |
| Dimension | 400*288*155mm(LxWxD) |
| N.W | 12kgs (no cover packing) |
| Stand alone module design |
| Totally waterproof design, IP65. |
| VSWR over protection and temperature over protection |
| Consumption Power: 210W |
| Storage temperature: -20℃ ~+60℃ Humidity:5%~90% |
Advantages and Features:
1. Each Jammer can jam up to 7 frequencies simultaneously.
2. Built-in high gain directional antennas for disguising, so the users dont need to install the antennas on site.
3. Specially equipped with IP65 Waterproof and solid housing for all weather protection.
4. Supports Remote control for switching ON/OFF Jammer
5. Supports Remote Access Control (computer internet software control) for controlling each band power. Failure alarms and running time.
Jammer Failure Alarms: Such as the cabinet opened maliciously, RF cables cut off deliberately, Modules failure,Temperature problems, the failure alarms will be sent to software.
6. UPS and battery backup in case of mains power failure for option.
7. ON/OFF each modules separately by computer software.
8. For the cellular phone jamming, only block the downlink frequencies, not disturb the uplink for keeping the BTS normal running.
9. Continuous operation, even in hot climates, with no time limit.
10. Heat sink designing combing with the fans to make system in a cooling status.
11. Secure design to avoid sabotage.
12. (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
13. Different directional antennas and 360 ºC omni antennas for option.
14. 2Years Quality Warranty

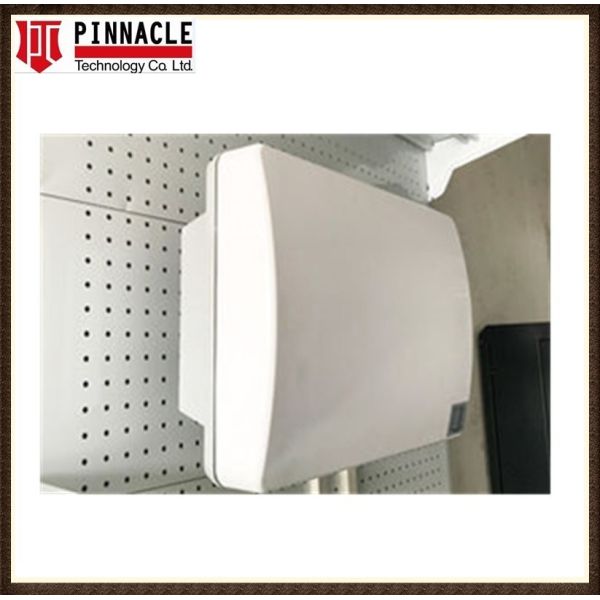

Detailed Photos
